Alumaxus Aluminum Exit Sign With Durable and Stylish Housing Series EEAE

Product Code: EEAE

Available in Stylish Brushed Aluminum or White or Black Powder-Coated Aluminum Housing

EEAE USD 99.00 2024/01/01
  • Your Starting Price:
  • Shipping Weight: .lbs
  • Quantity in Cart: none

Product Code as Configured:

Price as Configured

Overview

Alumaxus Stylish and Durable Die-Cast Exit Sign By Luxguild Series: EEAE

Alumaxus Series: EEAE Die-Cast Exit Sign Offers Beautiful Durability

Brief Description:

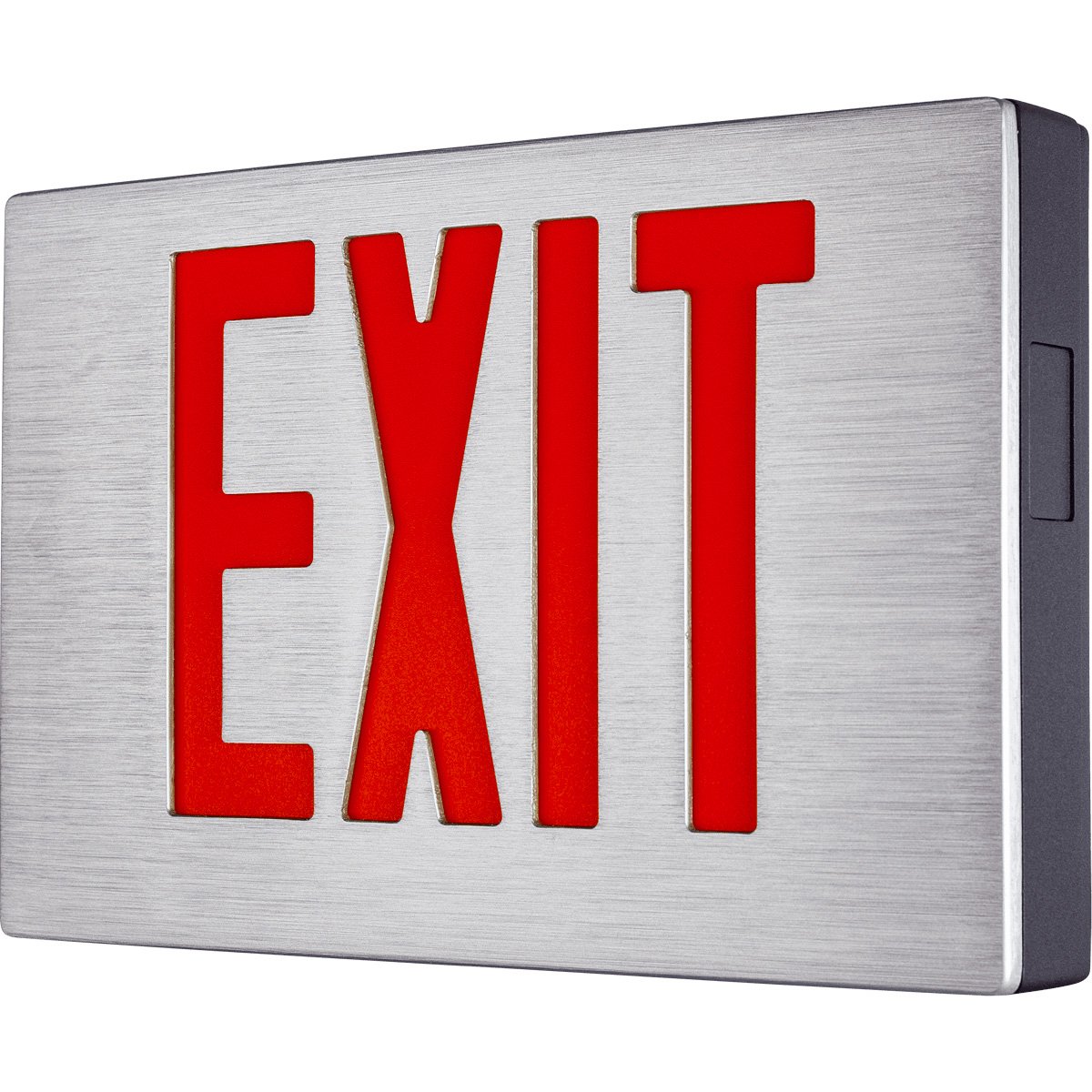

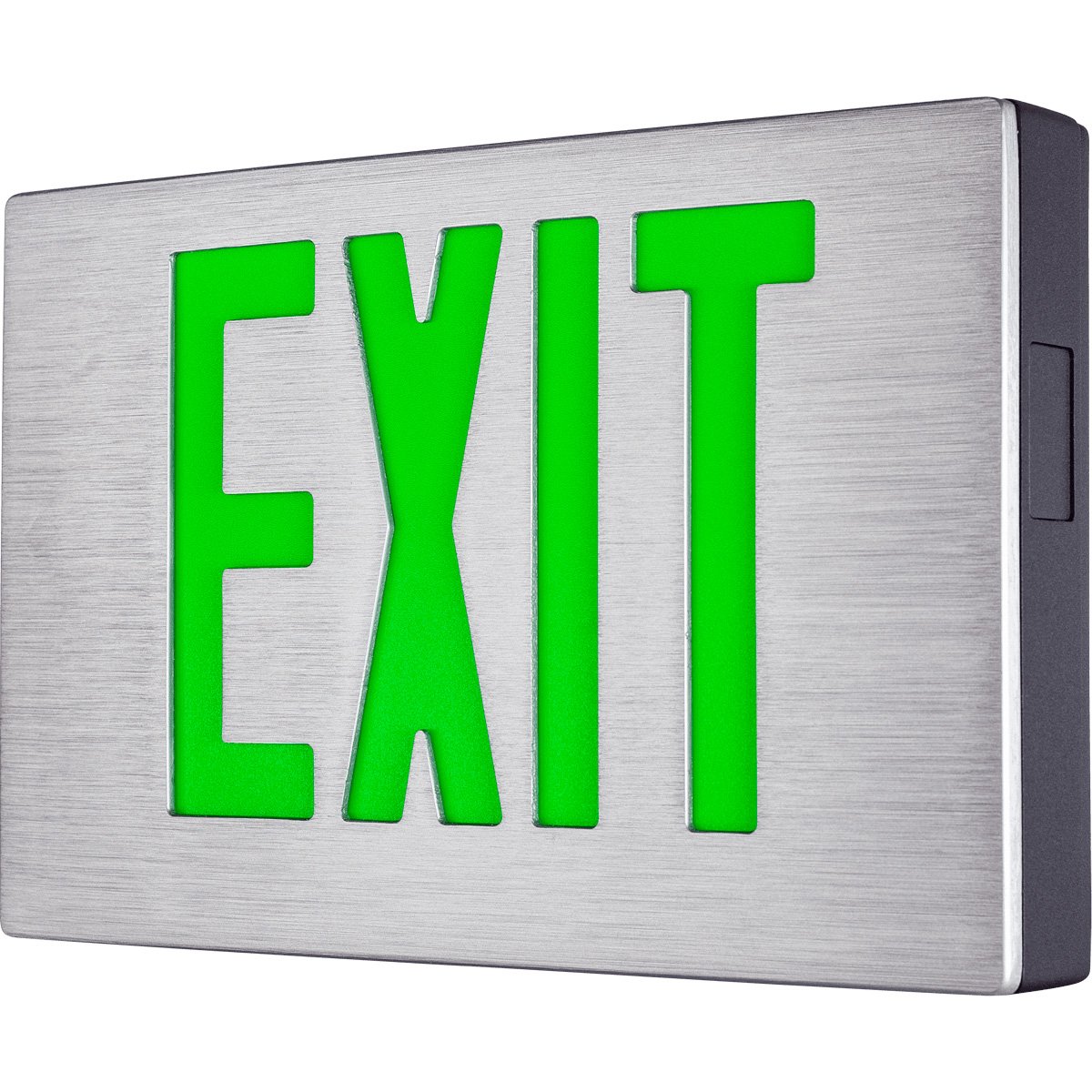

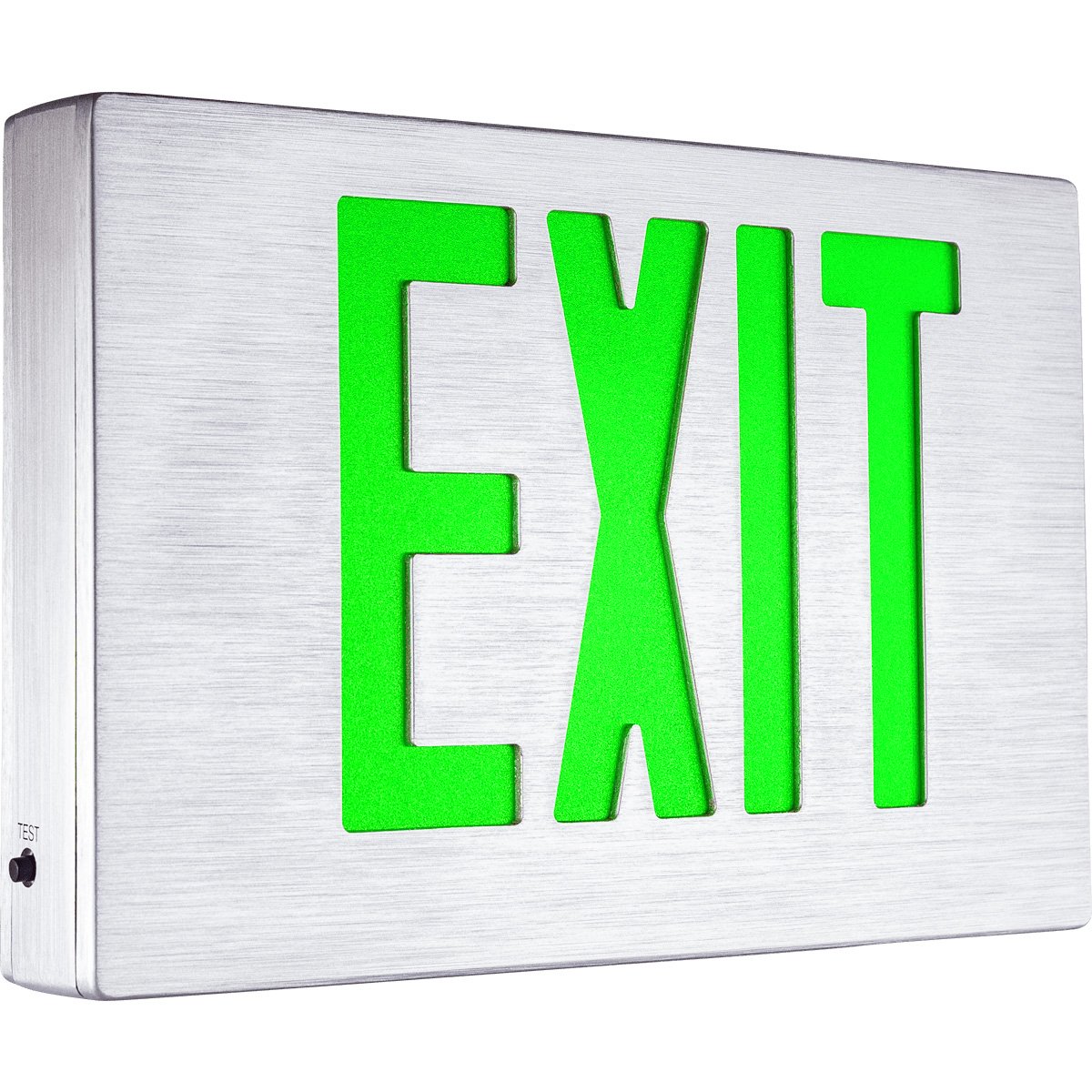

The Alumaxus Die-Cast Aluminum Exit Sign Featuring a Modern Curved Face Plate With Brushed Aluminum Accents.

Features

Curved, Brushed Aluminum Face.
Durable Die-Cast Housing.
Universal installation design; the same single unit works with top, side, or back mounting.
Configuration decided in-field, with with single or double face (Optional - additional cost), and L and/or R arrows or none at all.

Manufacturer:
Luxguild
Luxguild
Los Angeles California USA 844-394-8247
Product Code:
EEAE

Illumination

Brilliant Red or Green LEDs are positioned within the sign body cavity to ensure clear and even illumination across the full EXIT legend. The LEDs use less than 5 watts electricity and are efficient enough to remain illuminated using the on-board battery (EM version) for periods longer than 90 minutes.

Mounting

The universal mounting bracket makes connection to junction boxes quick and simple for top and side installations. The mounting bracket provides the means for the electrical wires to channel through to the electricity source. The back plate contains patterns for easy alignment connectivity for back mounting, simply use the knock out patterns to receive the electrical wires and the key slot pattern for connecting the two screws which are provided along with the needed wire connectors.

Housing

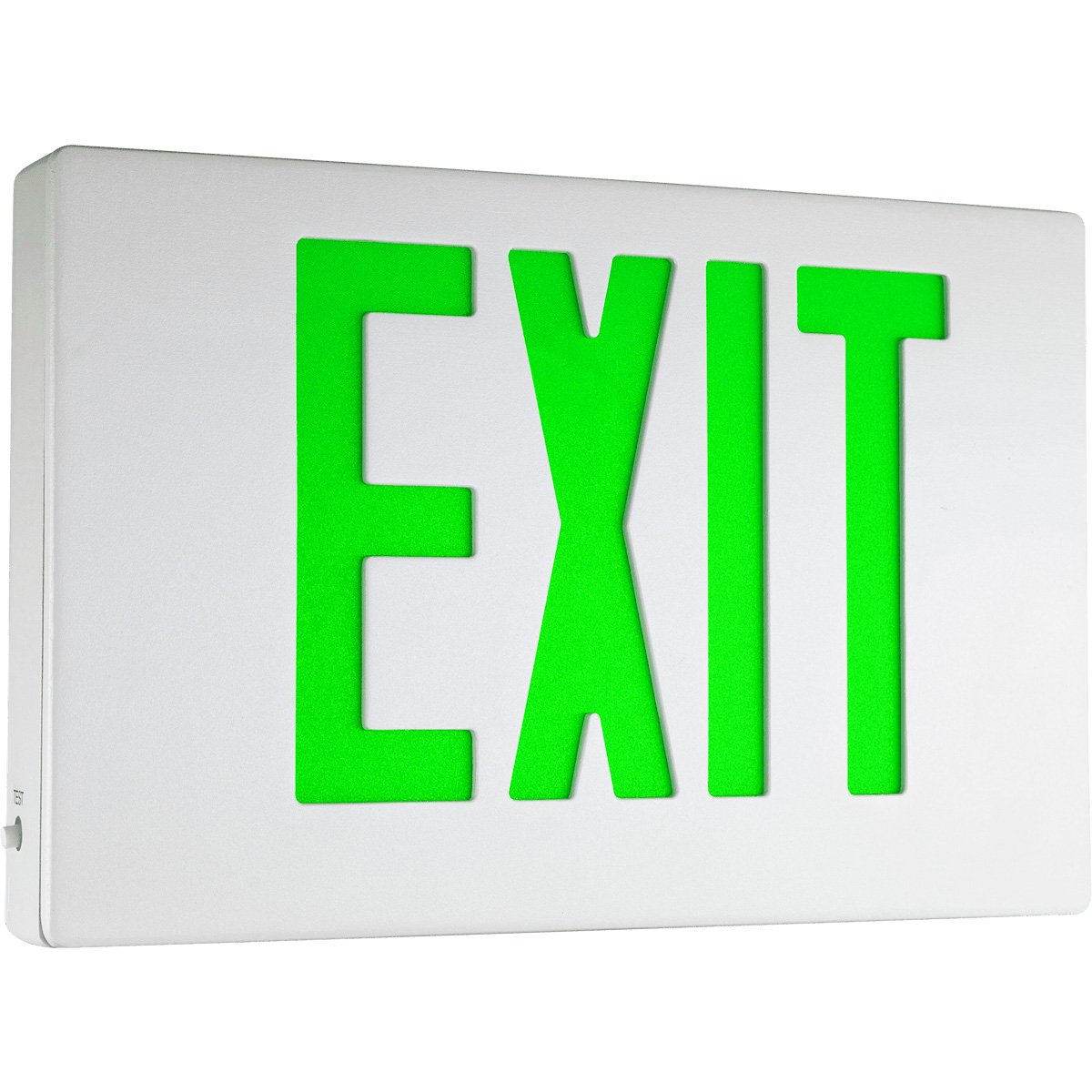

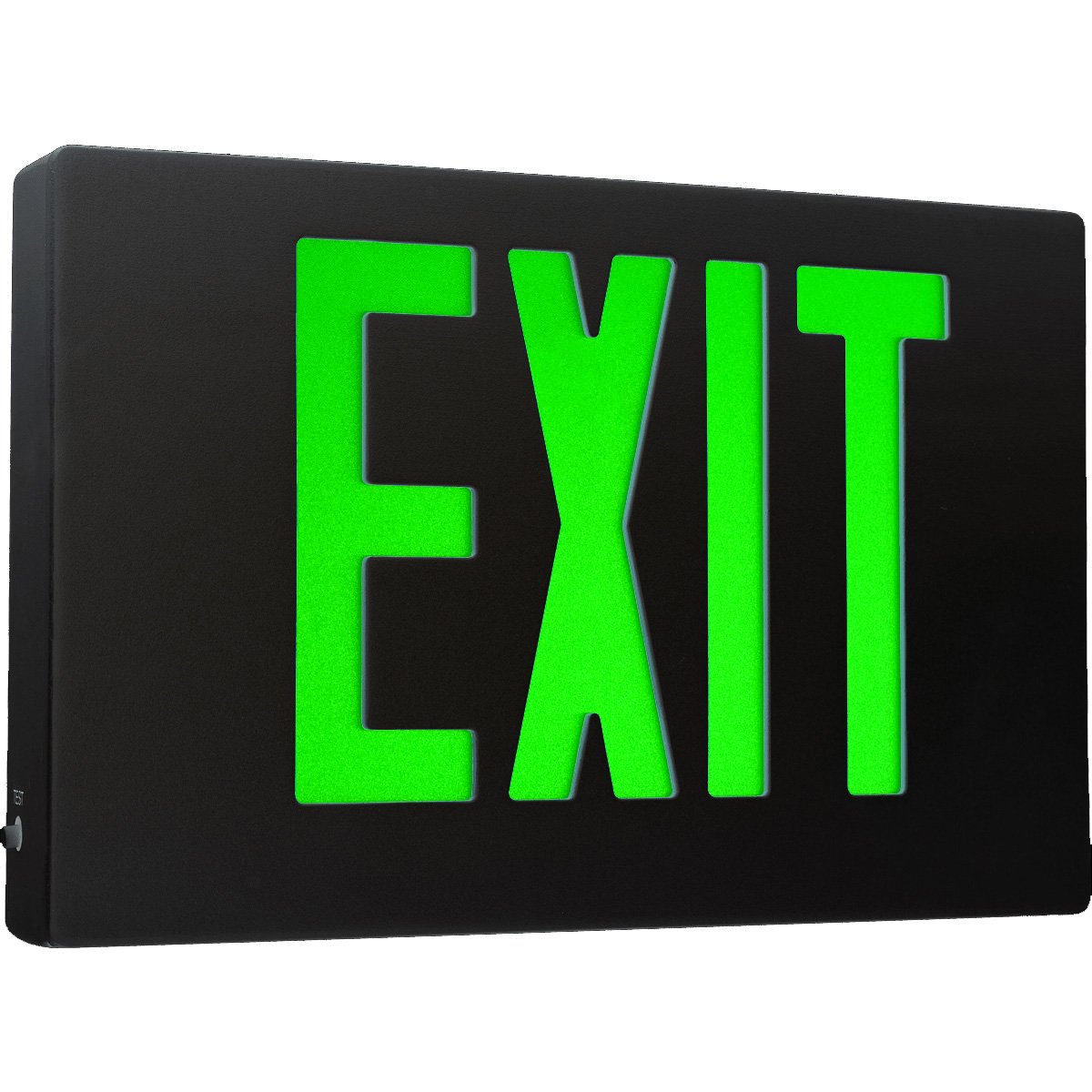

The Alumaxus features a curved aluminum face plate which is available in a brushed clear finish, or powder coated white or black. The housing is die-cast premium grade aluminum and is naturally impact-resistant. The unit is available with tamper-proof screws making this model an attractive, yet functional vandal-resistant option.

Options

  • TR: Tamper-resistant hardware helps prevent unauthorized access to the unit.
  • SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
  • 2C: Dual circuit option on the AC-only unit enables it to be connected to two different power supplies at the same time (ex. Power and Generator - one acting as a back-up to the other).
  • USA: Substantial transformation assembly in the U.S. complies with “Assembled in the USA” under the Buy American Act.

Warranty

5 years electronics.
Battery prorated for 5 years.

Listings

UL Listed for damp locations (0°C – 50°C). Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.

Installation

The Alumaxus is UL Listed for damp locations (0°C – 50°C). The sign mounts to junction boxes via the side or top configuration using the supplied mounting bracket. For back mounting, the back plate contains the needed grid for alignment and conduit knock outs. The mounting, face count, and arrow configuration can be decided at the time of installation.

Electrical

  • Dual 120/277 voltage.
  • Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
  • 4.8V long life maintenance-free, rechargeable NiCd battery.
  • Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
  • Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours, once power has been restored.

Mechanical

A single housing chasis is capable of supporting single or double face installations. The face plates contain perforated indentations on the inner side allowing for the chevrons to be configured at the time of installation. The side and top mounting connectors are indistinguishable while not in use and are easily removed for either configuration. The face plates and back plate snap lock in place. There, a push to test button is easily accessible when the unit is installed. The SDT version features legible indicators without requiring the unit to be opened or closely inspected.

Applications

Indoor dry or damp locations with temperature ranges between 0C - 50C or 32F-122F that would benefit from Alumaxus' enhanced durability and the brushed aluminum design aesthetic.

Optics

A strip of brilliant energy-efficient red or green LEDs evenly illuminate the signs EXIT legend.

Construction

The die-cast aluminum housing offers superior durability and design. The brushed finished features long strokes across the curved face which aesthetically complement other types of metals and lighting hues that may be present at the installation location.

Intended Use

Restaurants, Banks, Business Centers, Hotels, Convention Centers, Hospitals

Specifications

Typical Installation Environment:
Commercial,Damp Locations,Government,Gymnasium,Healthcare,Highrise,Hospitality,Indoors,Residential,Retail,Vandal-prone,
Rated Viewing Distance: (ft)
100
Input Voltage (AC)
120,277,120/277,
Remote Capable:
No
Number of (Remote) Heads Supported:
0
Emergency Runtime: (min.)
90,
Emergency Circuit Modes:
AC-Only,Integrated Battery Backup,Dual Circuit AC,Generator,Inverter,
Options
8 Inch Lettering,
New York City Approved?:
No
City of Los Angeles Approved?:
Yes
City of Chicago Approved?:
No
Installed Weight: (.lbs)
6
Master Case Quantity:
4
Master Case Width (.in):
13
Master Case Depth (.in):
10
Master Case Height (.in):
9
Body Materials:
Aluminum,
Unit Width (.in):
12.625
Unit Depth (.in):
2
Unit Height (.in):
8.375
Mounting Bracket Width (.in):
4.312
Mounting Bracket Depth (.in):
5.5
Mounting Bracket Height (.in):
.625
Country of Origin:
China
Battery Type:
Battery Model:
8.4V
Battery mAh:
0
Battery Cell Count:
4
Circuit Input (Hz):
60,
Wattage in Red LED:
3.6
Wattage in Green LED:
4.4
Wattage in White LED:
3
Wattage in Green LED @120v:
0
Wattage in Green LED @277v:
0
Wattage in Red LED @120v:
0
Wattage in Red LED @277v:
0
Wattage in White LED @120v:
0
Wattage in White LED @277v:
0
Input Amps for Green LEDs @ 120v (A):
0
Input Amps for Green LEDs @ 277v (A):
0
Input Amps for Red LEDs @ 120v (A):
0
Input Amps for Red LEDs @ 277v (A):
0
Input Amps for White LEDs @ 120v (A):
0
Input Amps for White LEDs @ 277v (A):
0
Available Face Count:
Single,Double,Universal,
Available Arrow Configurations:
Available Housing Colors:
Black,Brushed Aluminum,White,
Available Face Colors:
Black,White,Brushed Aluminum,
Available Framing/Trim Colors:
Black,Brushed Aluminum,White,
Available Illumination Colors:
Green,Red,
Illumination Lamp Type:
LED,
Max. Operation Temperature (C):
50
Max. Operation Temperature (F):
122
Min. Operation Temperature (C):
0
Min. Operation Temperature (F):
32
Hazardous Zone Protection Rating:
NA,
Hazardous Class Rating:
NA,
Hazardous Division Rating:
NA,
Hazardous Group Rating:
NA,
Hazardous Zone Rating:
NA,
Hazardous Area Temperature Code:
NA,
Certifications & Compliance:
UL US,

Files

Printable Catalog Sheets

Get The Specification Sheet.

Dimensions

9” 8 12 5½” 2 4 5 / 16
